Recall: Directories

• Set of entries $(n \to i)$
• Basically just contains a list (entry name, inode number) of pairs.
• Maps names to inodes.
• For each file or directory in a given directory, there is a string and a number in the data blocks(s) of the directory.
• Incomplete truth: All of these points are true, but…
  • Missing details on disk encoding (Implementation) and Authorization.
    • Implementation: How are files and directories actually encoded on disk?
    • Authorisation: Who can do what? How is it decided?

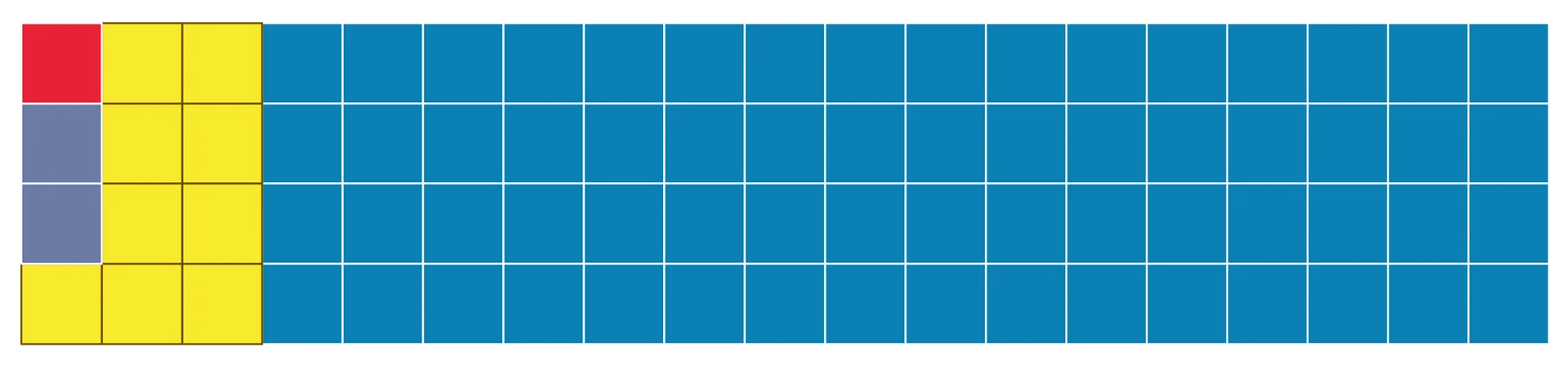

Filesystem

{width=400px}

• Method used by OS to organise and store data
• High-level Goal: Store files and directories in blocks

Disk Sectors

• Fixed-sized sectors on magnetic disks where data is stored
• Originally addressed by cylinder, head, and sector
  • In 1980s, Logic Block Access (LBA) replaced this method
• Disks may have around 512 bytes in size

Blocks

• Larger units of data compared to disk sectors
• Typically around 4 kiB in size
• Logically accessed by index and contain data or metadata
• Stores information in a filesystem such as
  • file contents
  • inodes
  • superblocks

inodes

• Contain essential informmation about files
  • file size
  • uid/gid/permissions
  • times (creation, modification, acces)
  • “pointers” to data sectors
• Serve as metadata structures in a filesystem to represent files and directories
  • Important for managing file attributes

inode Indirection

• Process of using pointers in inodes to indirectly access data blocks in a filesystem
  • i.e., exploring file size limits with different levels of indirection.
• Question: In a filesystem that has 512 B sectors and inodes with 12 block poitners, how large can a file be?
  • A file can be up to $12 \times 512 \text{ B} = 6144 \text{ B}$ in size without indirection
• Follow-up Question:
  • What if we permit indirection via one additional sector?
    • If indirection is permitted, the file size can be extended to $13 \times 512 \text{ B} = 6656 \text{ B}$
  • What about via two levels of sectors
    • By two sectors of indirection, the file size can be further extended

Sector Structure

• Indirection leads to a hierarchy for large files:
  • inode $\to$ sector $\to$ sectors $\to$ sectors
• Allows for efficient data storage and retrieval by mapping data blocks to specific sectors
• Pointers embedded directly in inodes are used for optimisation, especially for small files
  • Enhance performance and reduce data access overhead

Directory Entries

• Mapping names to inodes
• Can be stored in blocks
• Lets files and directories be organised by associating file names with their corresponding inode numbers
• Question: What data structures might you use to store directory entries? Why?
  • Directory entries can be stored using hash tables or linked lists.
    • Hash tables: Orivudes fast lookup times. Suitable for large directories
    • Linked lists: Simple and flexible in managing directory entries

Meta-meta-data

• Information used to keep track of free and allocated inodes and blocks in a filesystem
  • Can be managed through free lists or…
  • …given fixed sizes, bitmaps

Superblock

• Stores essential filesystem information
  • Filesystem size
  • Number of inodes
  • Offset of data blocks
• May have multiple copies for redundancy to enhance reliability of filesystem

Virtual Filesystem (VFS) Operations

• Generic actions that apply to any filesystem
• Includes operations like getattr, open, read, write, truncate, etc.
• Provides an object-oriented interface to interact with filesystem
  • Allows applications to perform standard file operations regardless of underlying filesystem type
• Thought exercise: Walk through steps required to open a file, read from it, write to it, and close it
  • Syscall open()
    • Specify file path and access mode
  • Syscall read()
    • Read data from opened file into buffer
  • Syscall write()
    • Modify file contents by writing data into it
  • Syscall close()
    • Release file descriptor and ensure pending changes are saved before closing file

Page Cache

• Mechanism used to cache disk blocks in memory to improve performance (talking to disks is slow!)
• Reduces the need to frequently access disk
• Caching some blocks makes sense, but number of blocks required is hard to predict.
• Page cacheing stores recently accessed data from files in memory
  • This allows faster retrieval when same data is requested again
• i.e., Helps minimise latency associated with disk I/O by keeping frequently accessed data readily available in memory
